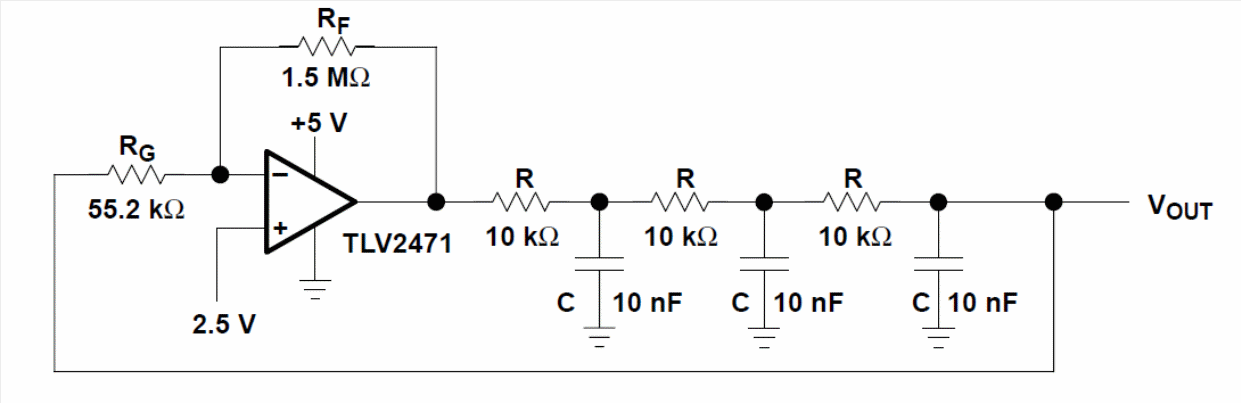

This circuit is an application note from Texas Instruments, generating a signal of 1.57 kHz given by the values of R and C that can be changed. The signal is sinusoidal and other frequencies can be generated according to the characteristics of the operational.
| Clique na imagem para ampliar |
