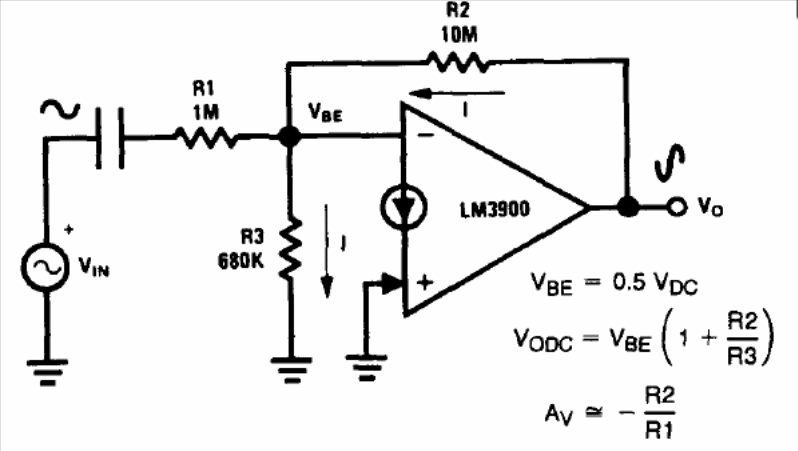

In the figure we have the basic configuration of an inverter transconductance amplifier, as suggested by National Semiconductor in its 1994 Linear Applications Handbook. The formulas for calculating the components are given next to the diagram.
