Sound Continuity Tester LM3909 (CB14285E)

Details: Written by: Newton C. Braga

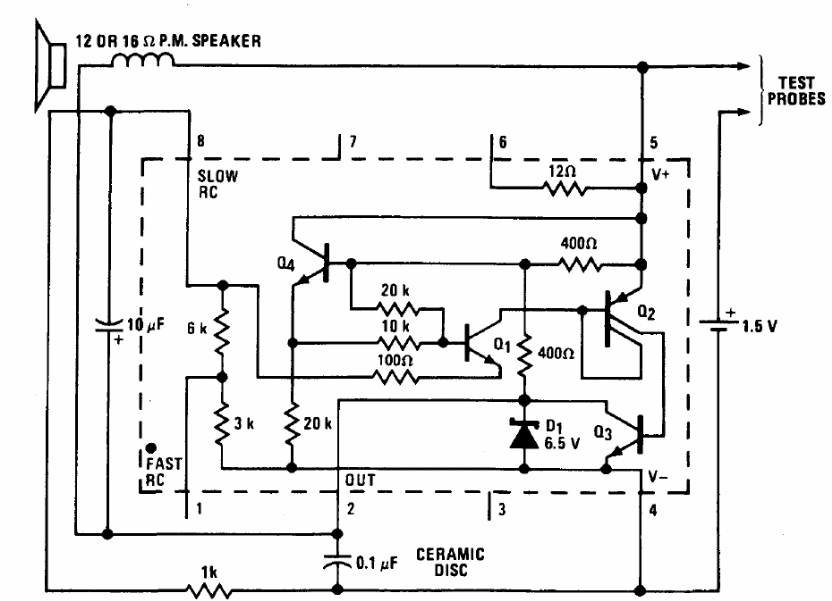

We found this circuit in a technical documentation for the National Semiconductor LM3909. The circuit consists of a low consumption continuity tester powered by a single battery.
