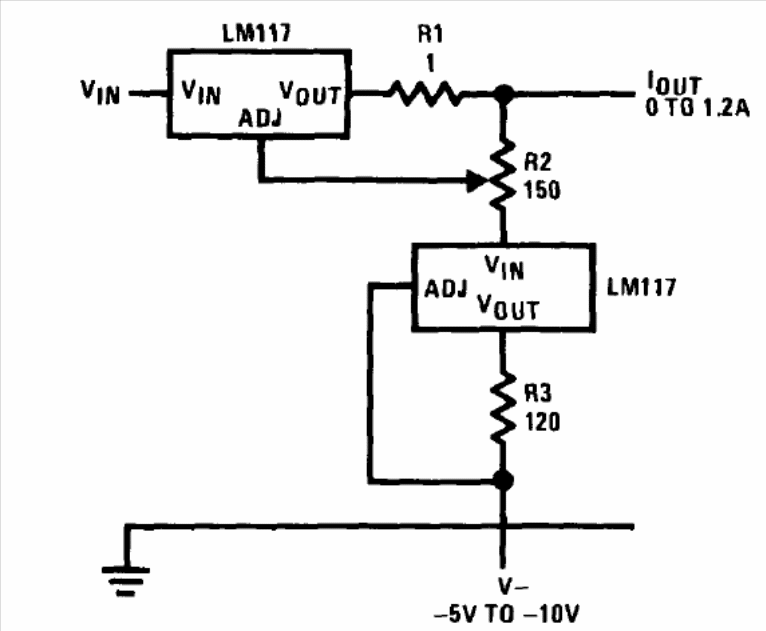

We found this circuit in the Linear Applications Handbook of the National Semiconductor of 1994. The integrated circuits must have heat sinks and the input must have voltage compatible with the application.
| Clique na imagem para ampliar |
Current Regulator LM117 (CB14301E)
- Details
- Written by: Newton C. Braga
