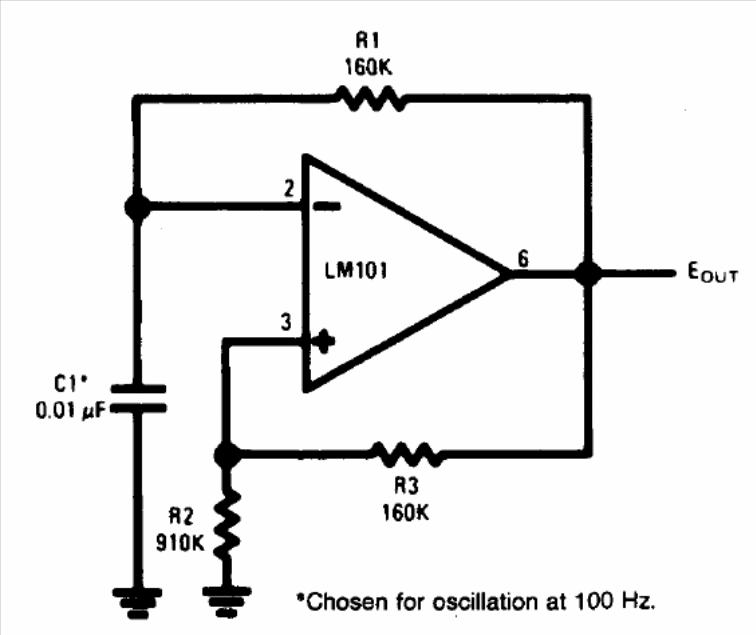

This astable multivibrator with an operational one at the time was found in the National Semiconductor's Linear Application Handbook of 1994. The source must be symmetrical, and the frequency can be changed by changing the capacitor.
