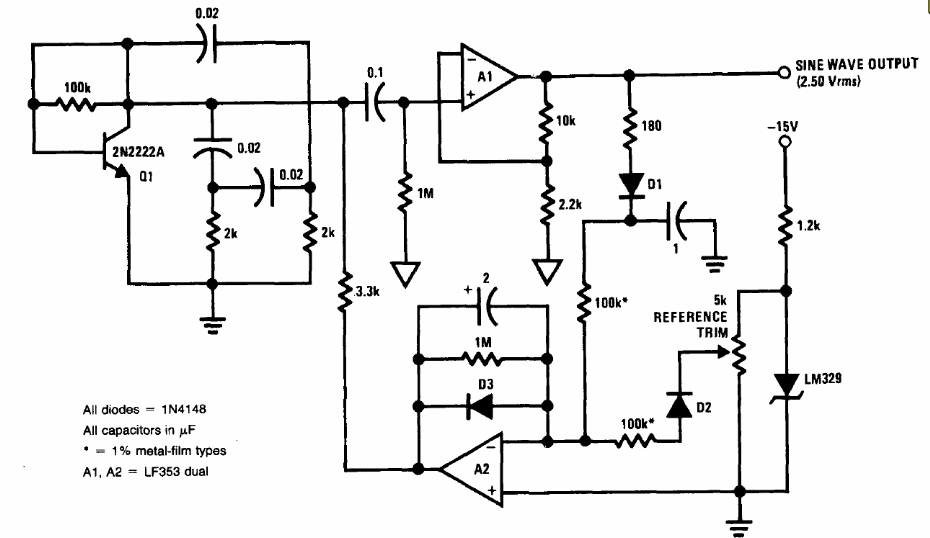

Sinusoidal Generator (CB14356E)

Details
Written by: Newton C. Braga



The circuit shown is from the 1994 Linear Applications Handbook by National Semiconductor. Some of the components are not currently common and should be looked for equivalents.
