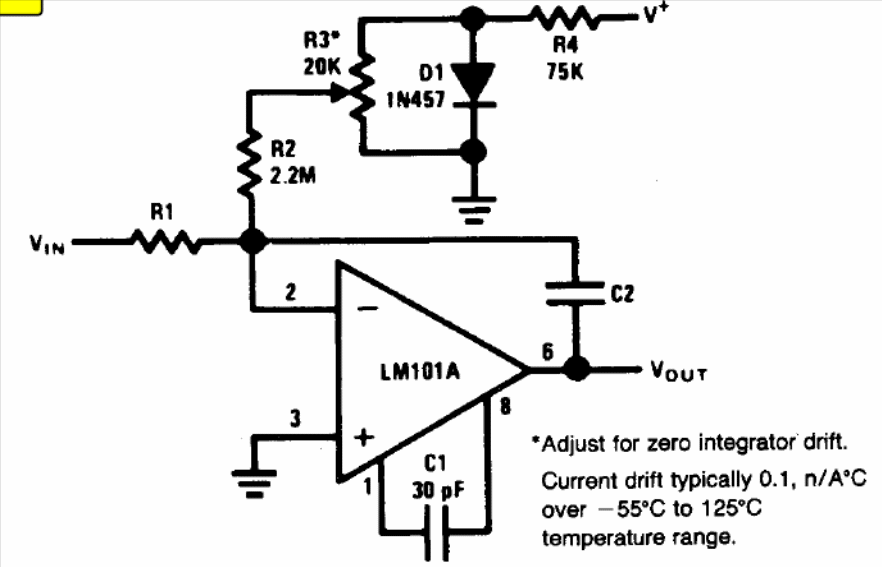

The circuit presented is from the National Semiconductor's Linear Applications Handbook of 1994. We can implement it with other operational amplifiers. The diode admits equivalents and the components can be brought to current standard values.
| Clique na imagem para ampliar |
