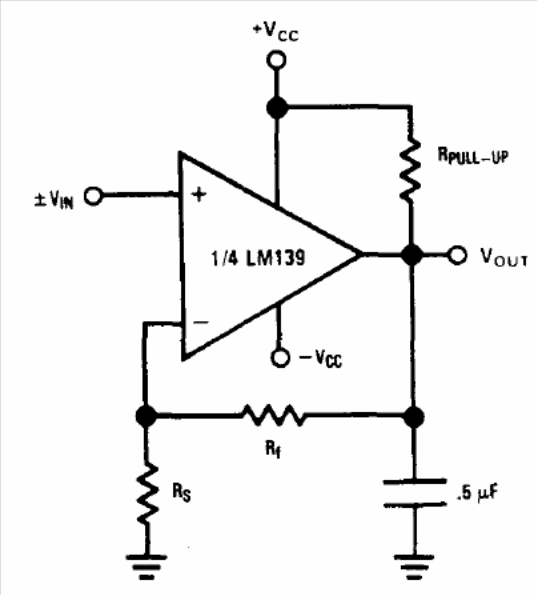

The presented circuit uses a symmetrical power source to supply an amplifier with the LM139 or equivalent of the series. The circuit was suggested by National Semiconductor's Linear Applications Handbook. Rf / Rs determine the circuit gain.
Non-Inverter Amplifier LM139 (CB14247E)
- Details
- Written by: Newton C. Braga
