Stepper Motor Angle Meter (CB13808E)

Details
Written by: Newton C. Braga

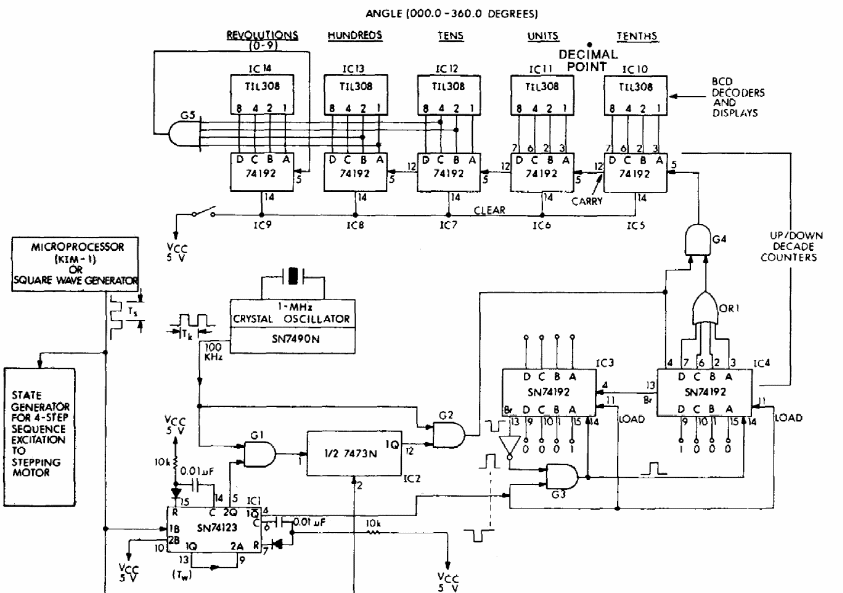

This interesting circuit, from a digital documentation two years 1978 shows how to implement a circuit that measures the position or angle of a stepper motor controlled by a microcontroller.
