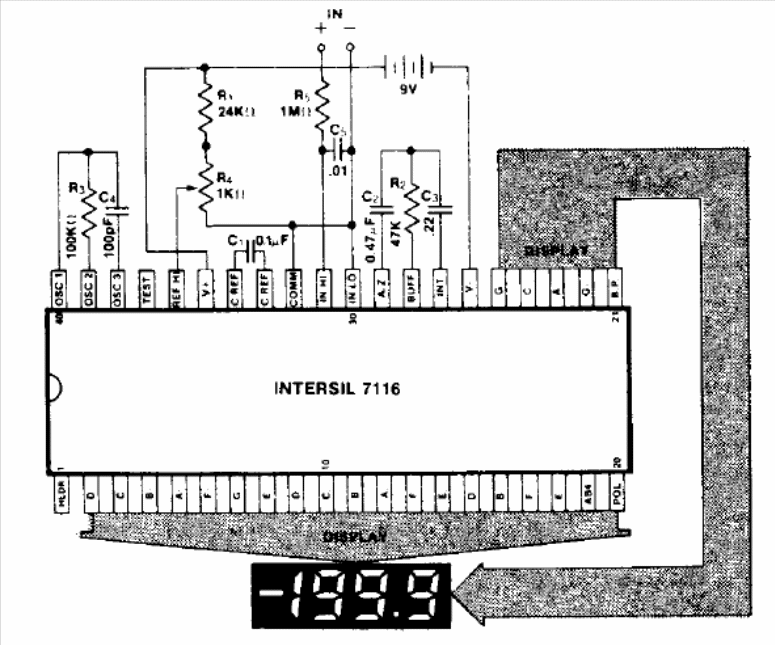

This circuit is from the 1983 Intersil Databook. The circuit operates on a 9 V battery and has a very low consumption, being found in many multimeters and other low-cost instruments. The full scale is determined by the input resistor.
