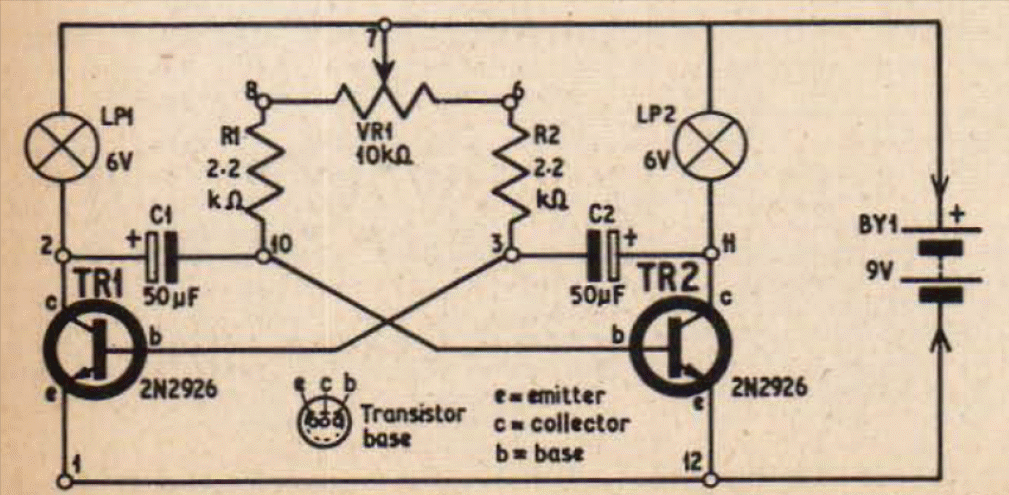

This lamp flasher configuration using an astable multivibrator is from a 1968 publication. The frequency depends on the capacitors, which can be 47 uF and instead of the lamps we can use LEDs in series with 470 ohms resistors. The transistors can be the BC548.
