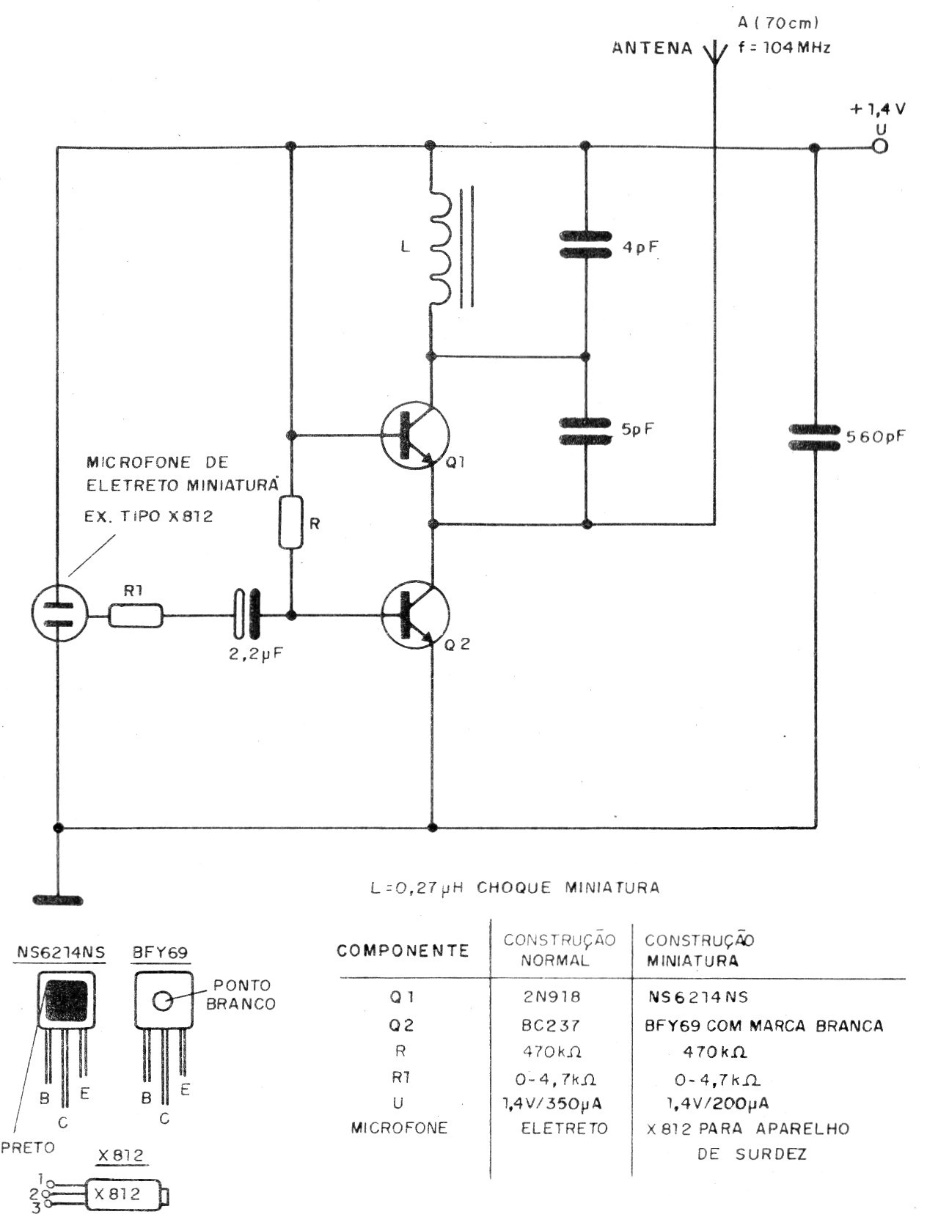

If mounted with SMD components, this transmitter will be so small that it can be installed inside a regular pen. The coil consists of 6 turns of wire 28 in a 0.5 cm shape without a core. Tuning is done by tightening and stretching the turns. Power is provided by a button-type battery. The circuit is from a 1993 espionage publication.
