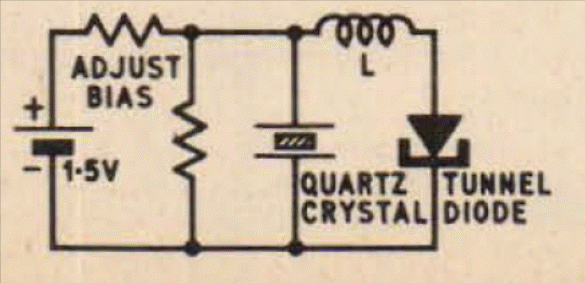

This is the normal configuration for an oscillator with a tunnel diode. The crystal determines the frequency and the resistors in the range of 1 to 22 ohms must be obtained experimentally to obtain the oscillation.
Tunnel Diode Oscillator (CB14442E)
- Details
- Written by: Newton C. Braga
