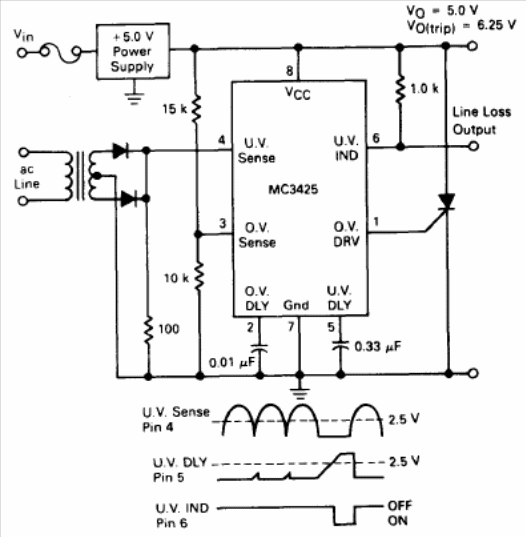

5V Powwr Supply Crowbar protection MC3425 (CB14530E)

Details
Written by: Newton C. Braga



This circuit is suggested by Motorola in its 1990 Linear Databook. The integrated circuit is no longer common in the market.
