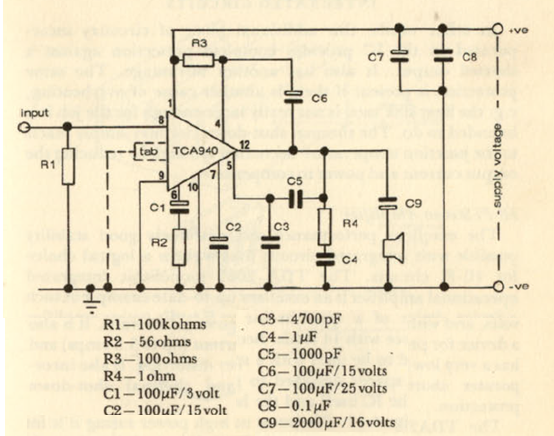

TCA940 amplifier (CB14789E)

Details
Written by: Newton C. Braga



This amplifier provides 7 W x 16V output and 10 W with 20 V in load of 4 ohms. At 8 ohms the power is slightly less. The integrated circuit must be equipped with a heat radiator.
