Instrumentation Amplifier TL064 (CB15303E)

Details
Written by: Newton C. Braga

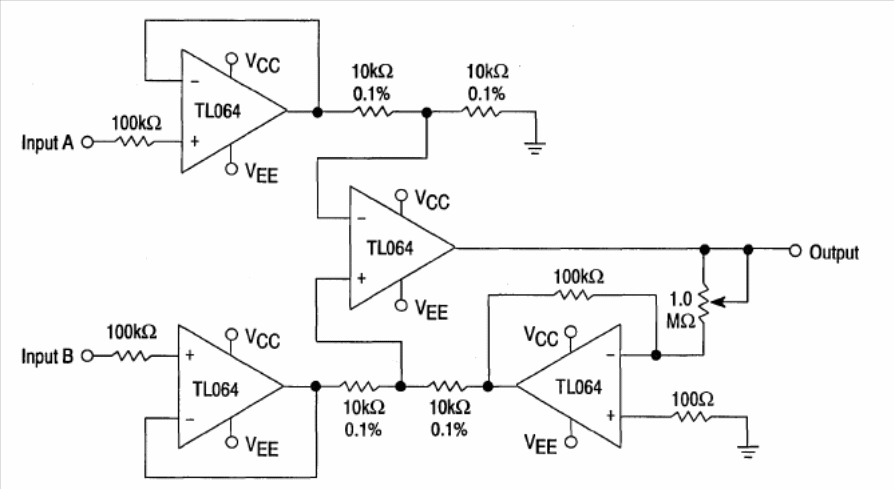

This high input impedance circuit is suggested by Motorola's 1993 Linear Interface ICs. The power supply must be symmetrical. The circuit has a differential input.




| Clique na imagem para ampliar |
