Adjustable Current Limiter (CB14513E)

Details
Written by: Newton C. Braga

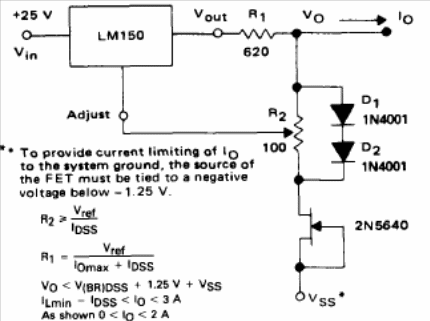

Several are the manufacturers of the LM150, 250 and 350 series of 3 A regulators. The circuit below is suggested by Motorola's Linear Databook of 1990 and can be found in other manuals.
