Triangular Generator with DA Converter MC10318 (CB14551E)

Details
Written by: Newton C. Braga

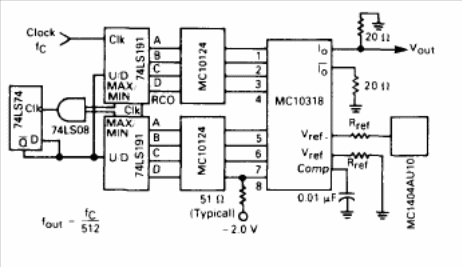

The circuit shown is from the Motorola Linear Databook of 1990. This circuit converts signals in sequence into a triangular signal given by the digital to analog converter.
