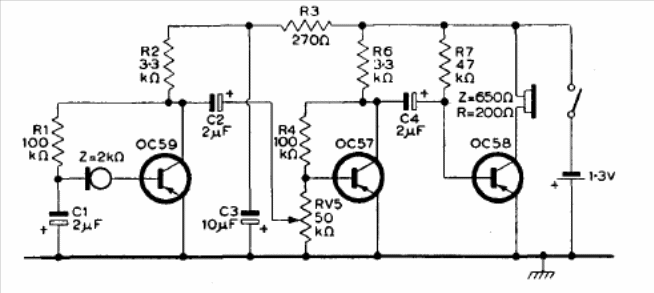

The circuit selected is from the 1960 Mullard transistor reference manual. The circuit is powered by a single 1.3 V battery and the transistors are germanium.
| Clique na imagem para ampliar |
3 Transistor Hearing Aid Amplifier (CB14759E)
- Details
- Written by: Newton C. Braga
