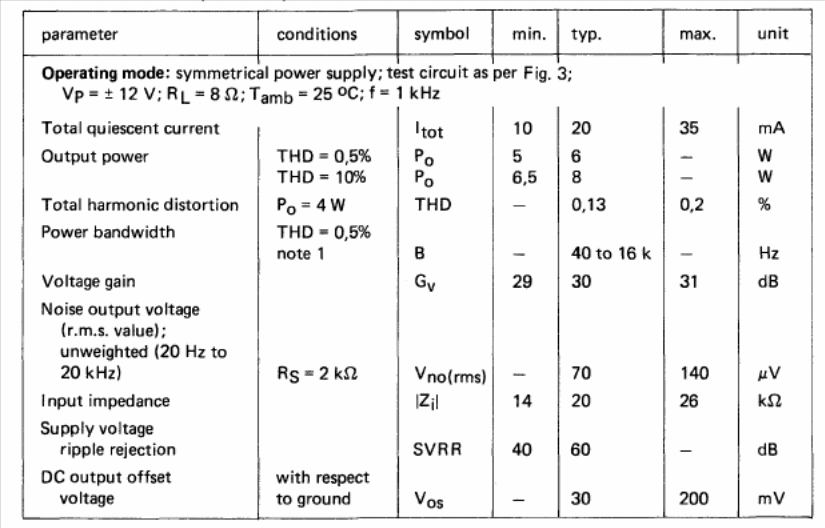

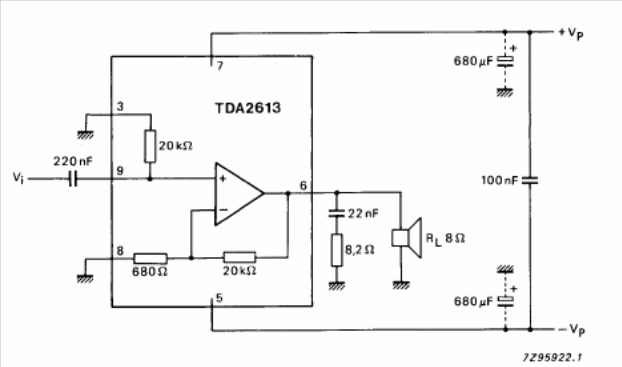

This circuit is from a 1990 Philips Databook. The circuit uses a symmetrical source and power from 15 to 40 V. Performance information is given in the table below.
| Clique na imagem para ampliar |
6 W amplifier TDA2613 (CB15393E)
- Details
- Written by: Newton C. Braga
