Clipper 741 (CB15061E)
- Details
- Written by: Newton C. Braga

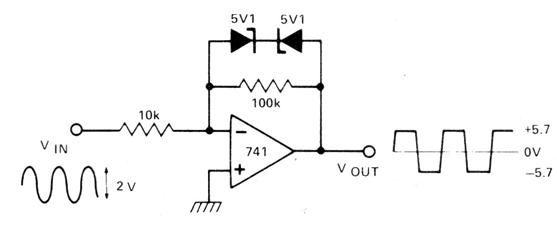

This circuit limits the intensity of the output signal to a level given by the zener diodes. The operational amplifier must be powered by a symmetrical source.
