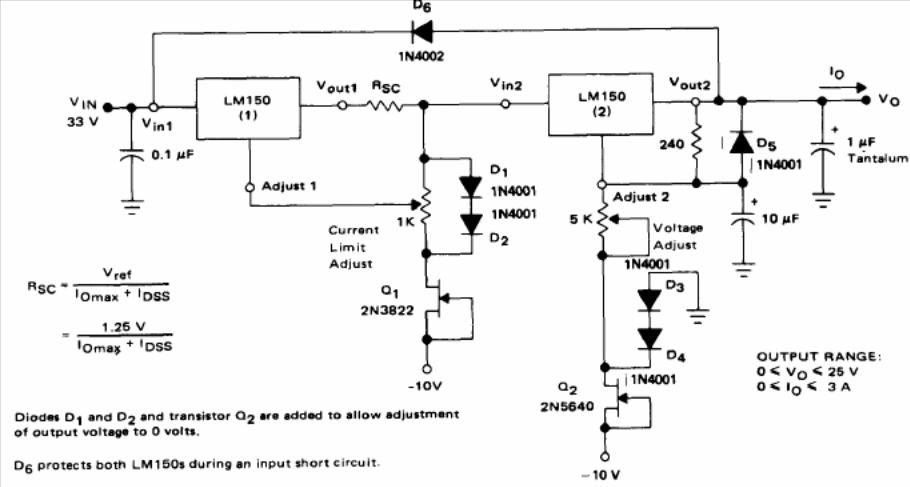

The LM150, 250 and 350 series of 3 A are manufactured by several semiconductor industries that suggest applications in their manuals. The circuit below is from Motorola's 1990 Linear Databook. The circuit has both voltage regulation and current regulation.
