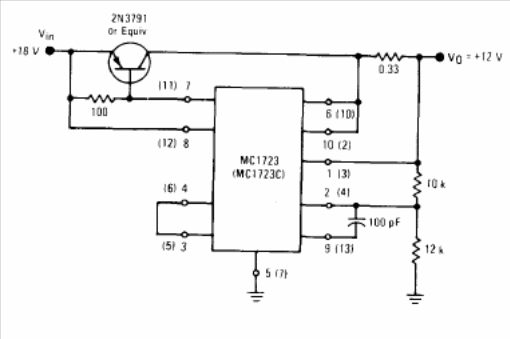

In the figure we have the basic configuration of a regulator for 12 V x 1 A suggested by Motorola in its 1990 Linear Databook. This circuit also appears in documentation from other manufacturers of the integrated circuit used.
Regulator 12 V x 1 A 723 (CB14529E)
