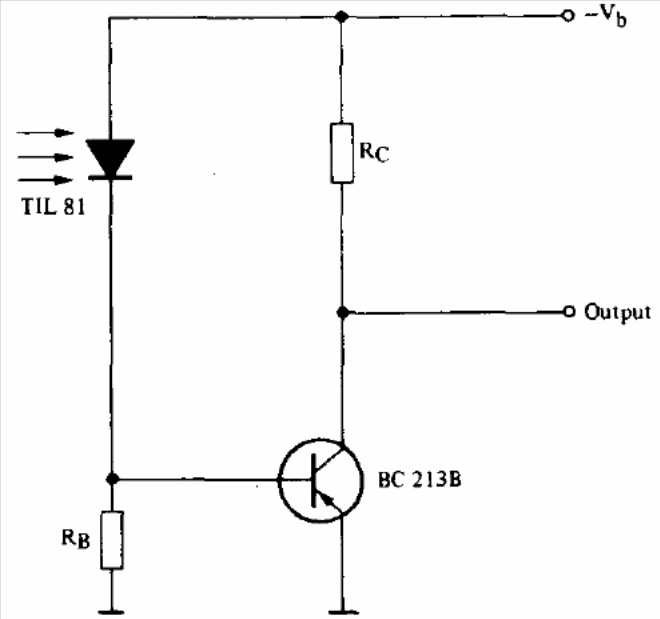

The presented circuit uses a PNP transistor, which can be the BC558. Observe the polarity of the supply. The circuit is suggested by Texas Instruments opto-electronic documentation.
| Clique na imagem para ampliar |
Photodiode Currente Control (2) (CB14643E)
- Details
- Written by: Newton C. Braga
