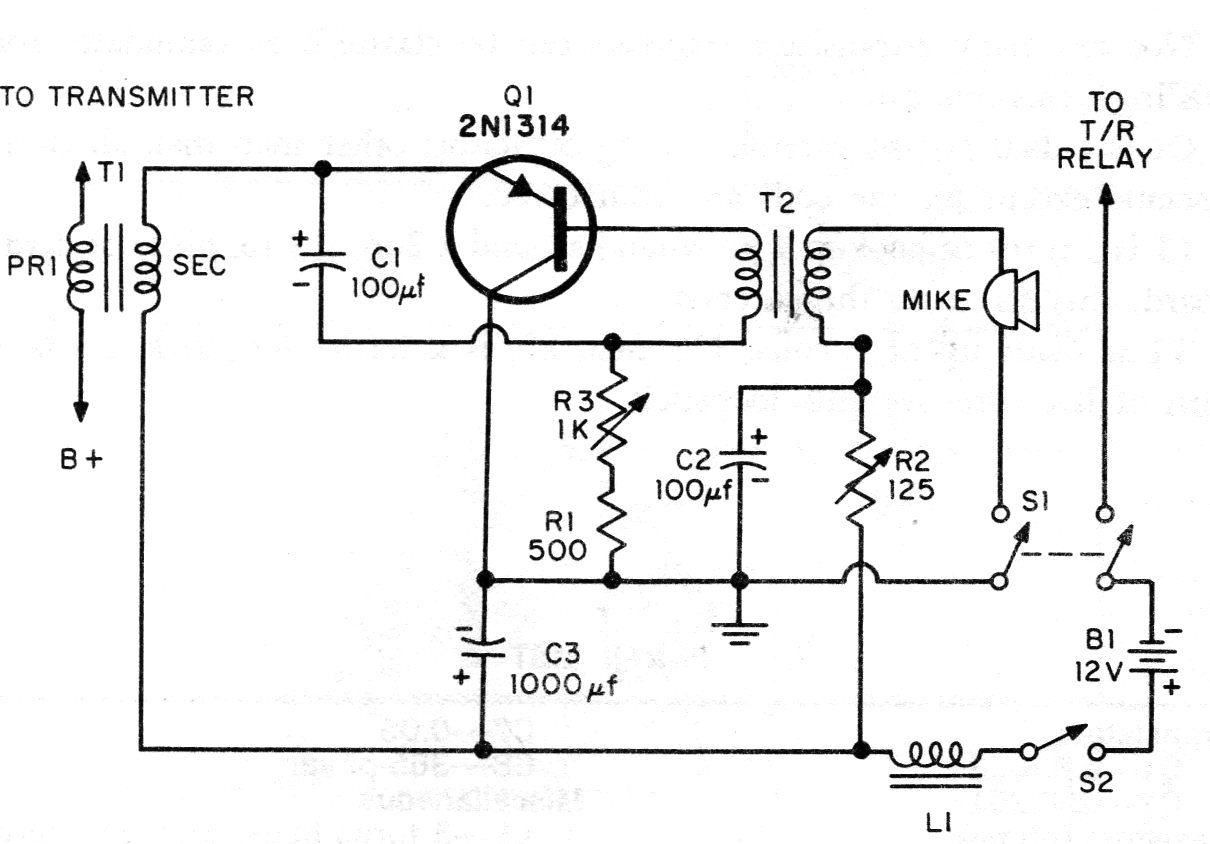

This circuit is designed to modulate small AM transmitters with the same power order. The circuit is from a 1964 publication. Transformers are the critical elements, and the transistor can be BD136 or TIP32. The microphone is of low impedance.
