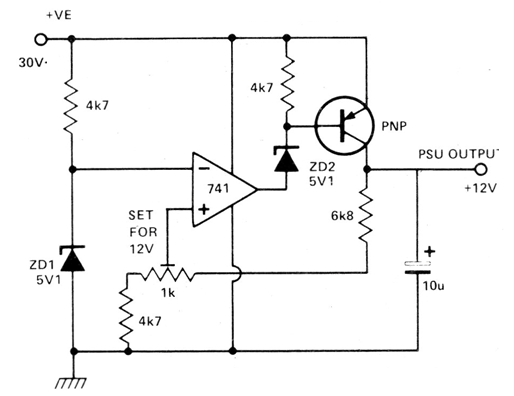

The maximum current of this circuit can reach 500 mA with BD136 and 1 A with TIP32. The circuit provides an output voltage of 12 V adjusted in the trimpot. This configuration was found in a 1978 documentation.
12 V regulator 741 (CB15060E)
- Details
- Written by: Newton C. Braga
