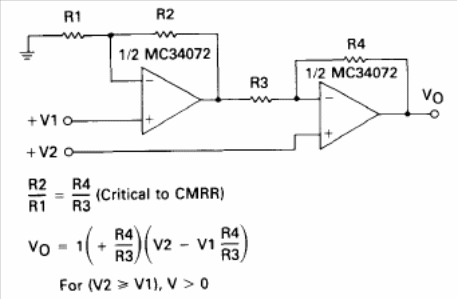

We found this circuit in Motorola's Linear Databook in 1990. The circuit has high input impedance, and the components can be calculated using the formulas next to the diagram.
High Input Impedance Differential Amplifier MC34072 (CB14485E)
