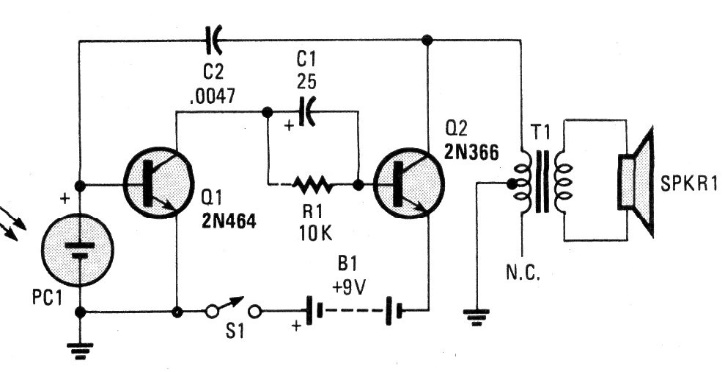

The sound of this experimental musical instrument is produced by the movement of the hand in front of a sensor. By controlling the incident light in the LDR, the frequency changes. The photocell is the type found in calculators and the transistors can be BC548. The transformer is of the type found at the output of transistor radios.
