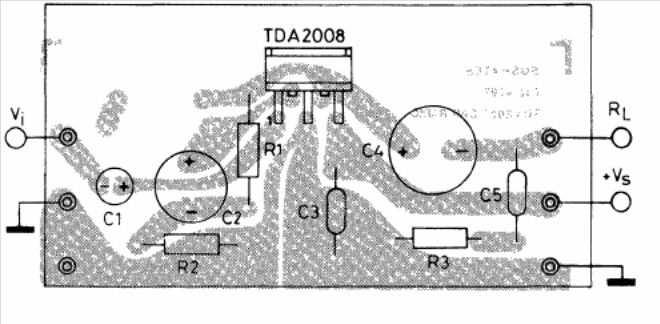

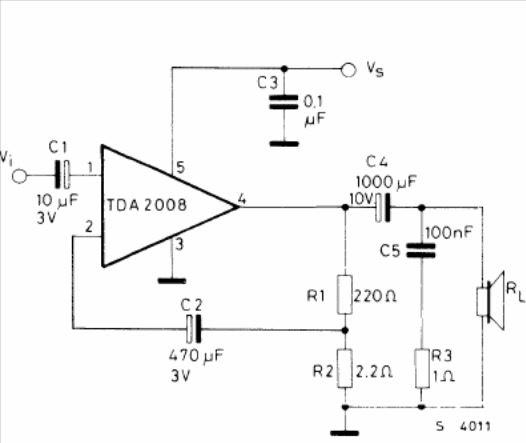

We found this circuit in the 1982 SGS Linear Integrated Circuits Manual. The circuit can be powered by voltages from 10 to 28 V and the TDA2008 must have a good heat radiator., Board suggestion is given next to the diagram.
