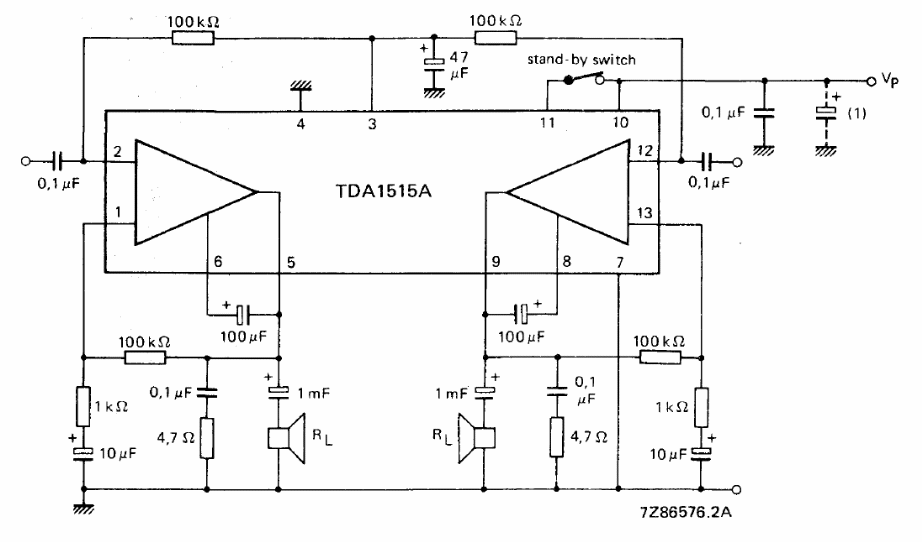

This well-known configuration, used in many car radios, is from the Philips Data Book of 1990. The circuit can be powered by voltages from 6 to 12 V. The TDA must be mounted on a good heat radiator.
| Clique na imagem para ampliar |
12 W per Channel Automotive Amplifier TDA1515A (CB15373E)
- Details
- Written by: Newton C. Braga
