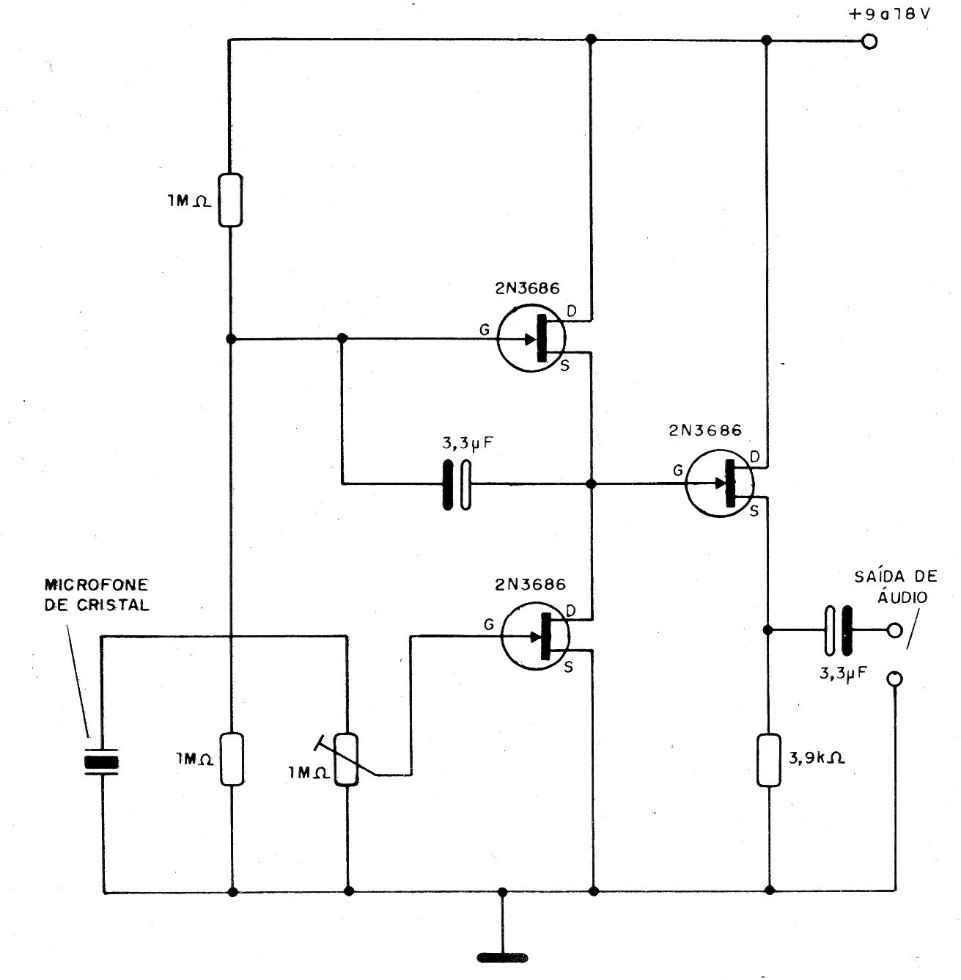

This circuit uses 3 FETs to convert the high impedance signal from a crystal or ceramic microphone to a low impedance signal. The circuit is from 1993 documentation and equivalent FETs like the BF245 can be used.
| Clique na imagem para ampliar |
FET Impedance Converter (CB14898E)
- Details
- Written by: Newton C. Braga
