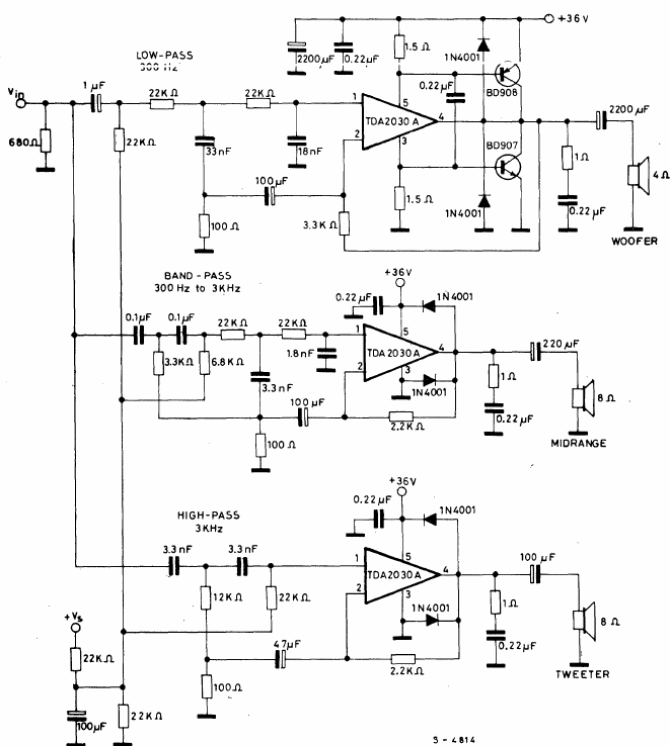

This amplifier provides 20 W of power on each channel, containing separate filters to power a woofer, mid-range and tweeter. The circuit is from the SGS linear integrated circuits manual.
| Clique na imagem para ampliar |
60W Mid Treble and Bass Amplifier (CB15248E)
- Details
- Written by: Newton C. Braga
