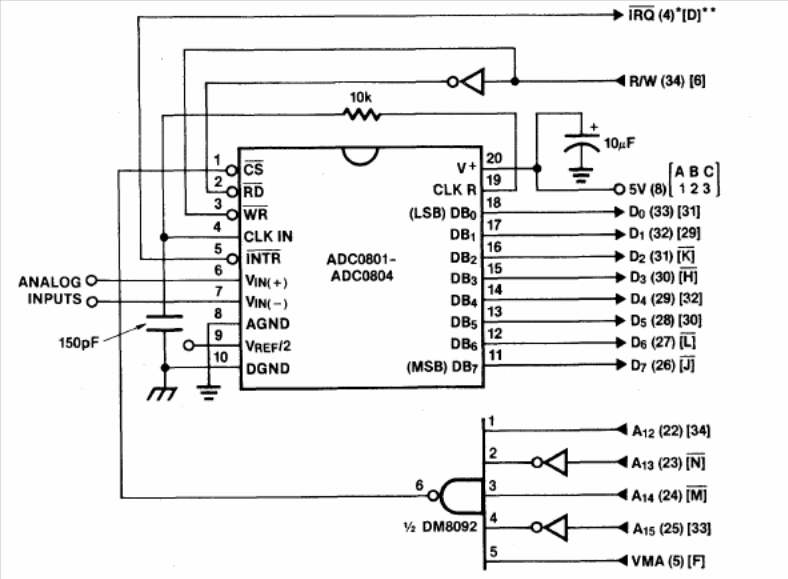

CPU Interface ADC0801 to 0804 (CB15351E)

Details
Written by: Newton C. Braga



This interface shield circuit is from the 1983 Intersil Databook. The components used are uncommon today. ADCs are low-cost digital converters. The power source voltage must be 5 V.
