Two Transformers DC to DC inverter (CB14779E)

Details
Written by: Newton C. Braga

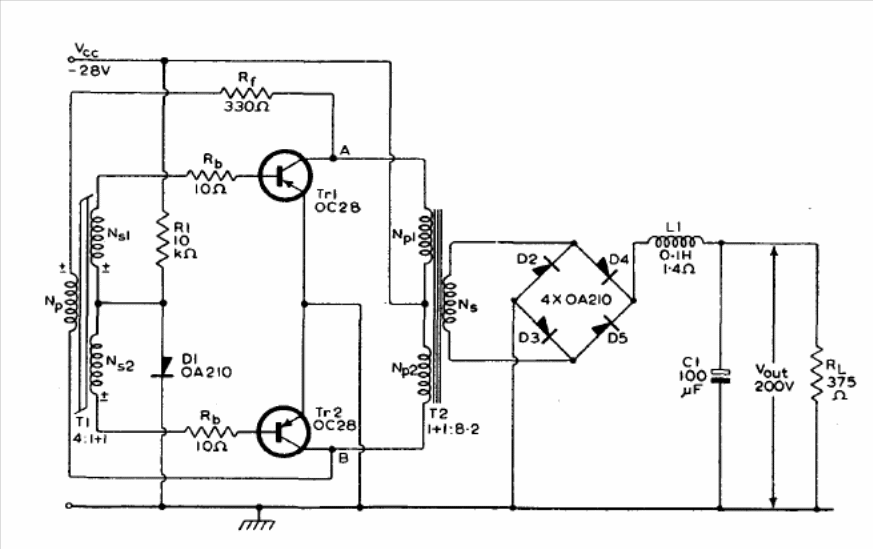

This circuit of dozens of watts uses germanium transistors and the critical components are transformers. The circuit is from the 1960 Mullard transistor application manual.
