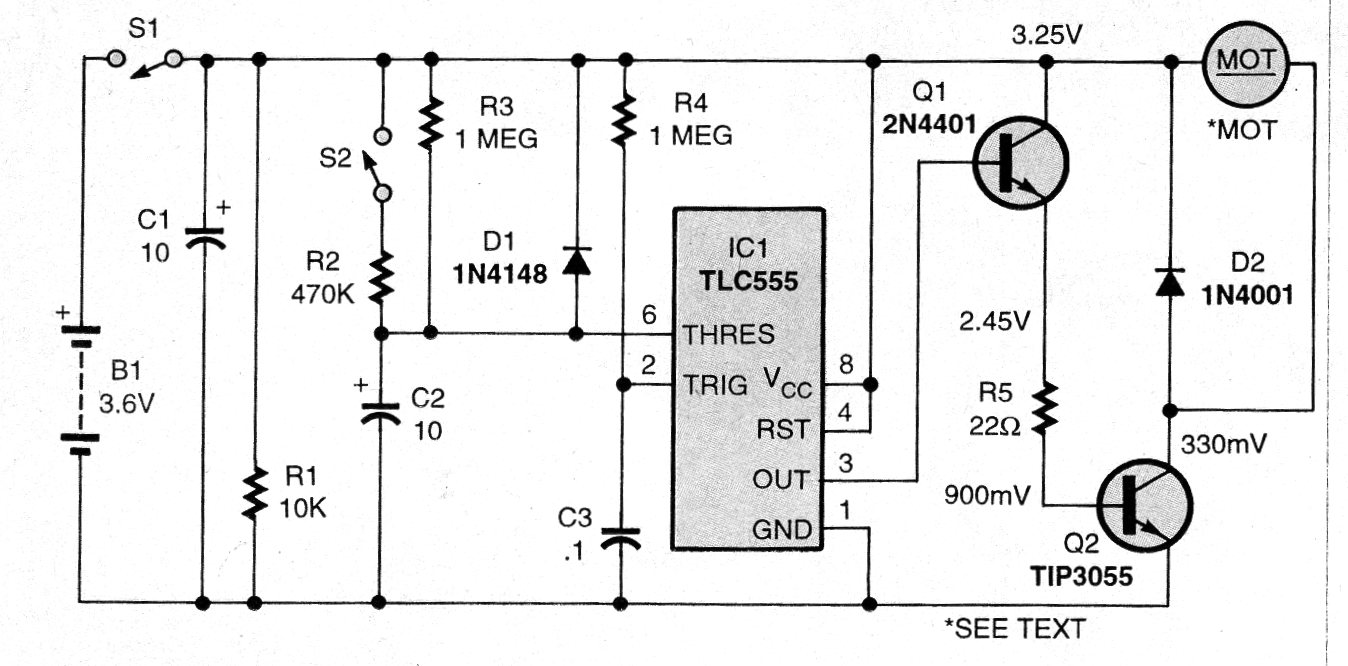

This circuit is indicated to determine the flight time of an electric motor model airplane. The circuit can also be used in other applications. Transistors support equivalents. We found this configuration in an American magazine from the 80s. For an application like the shield, remove S2 and apply the control signal (pulse) in S2.
