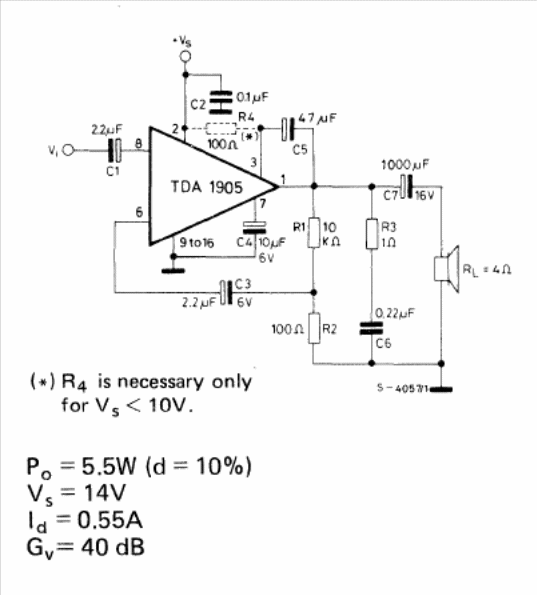

This circuit is suggested by the 1982 SGS linear integrated circuit manual. The plate is given next to the diagram. The component used is not common today and the source must be at least 700 mA.
5 W Amplifier without Muting TDA1905 (CB15220E)
- Details
- Written by: Newton C. Braga
