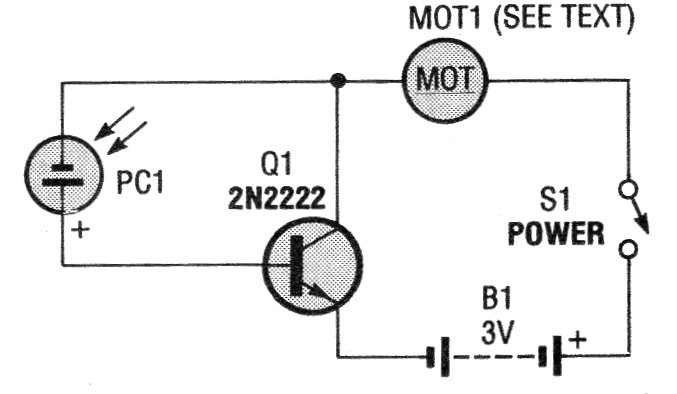

In the figure we have the photo-conductive way of using a photocell to control a small motor with a current of up to 200 mA. For larger currents, use a BD135. The circuit is from 1979 documentation.
| Clique na imagem para ampliar |
Photocell Motor Control (CB14945E)
- Details
- Written by: Newton C. Braga
