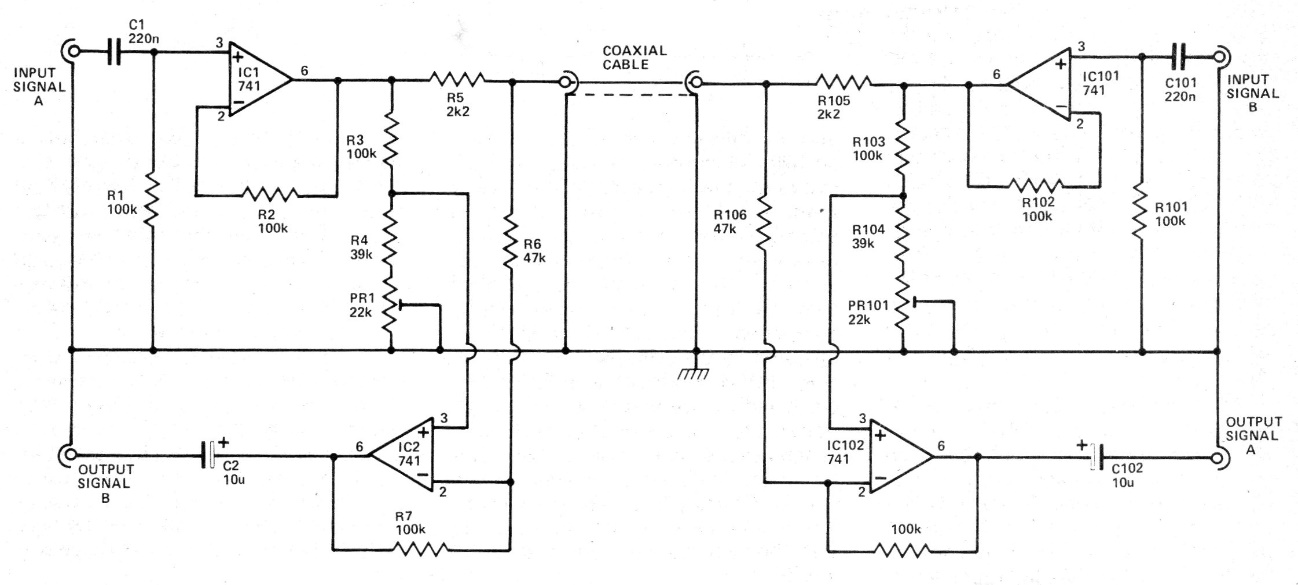

We found this circuit in an English documentation from 1981. It can be used as a base for a motorcycle intercom. The circuit uses operational 741 but can be implemented with equivalents. The source must be symmetrical from 6 to 12 V.
| Clique na imagem para ampliar |
