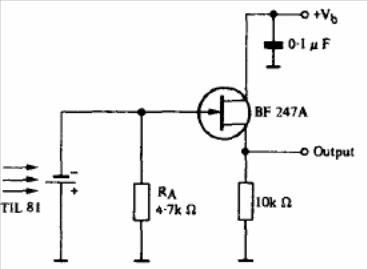

This photo-receiver circuit can use either a photodiode in voltage generator mode or a photo-voltaic cell. The phototransistor admits an equivalent. The circuit is from the Texas Instruments opto-electronics manual.
w
Modulated Light Receiver in Voltaic Cell Mode (CB14694E)
- Details
- Written by: Newton C. Braga
