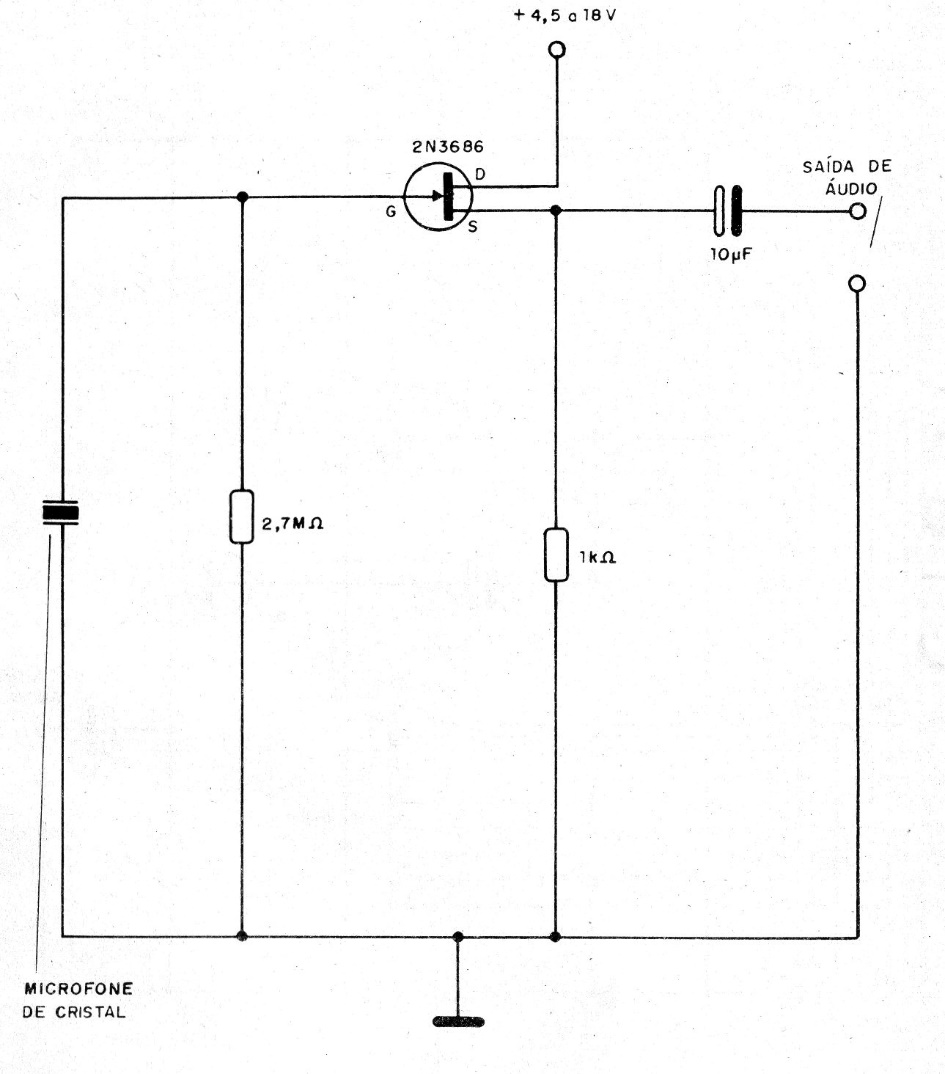

This circuit consists of a pre-amplifier for high impedance microphones. The circuit uses a FET and has excellent gain, providing a low impedance signal. We found this configuration in a 1993 documentation.
| Clique na imagem para ampliar |
Impedance Adapter (CB14897E)
- Details
- Written by: Newton C. Braga
