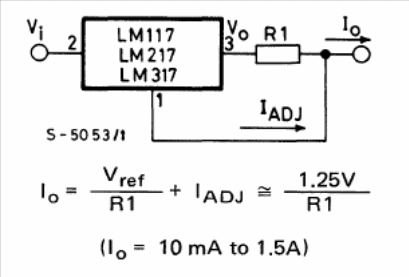

This conventional circuit of the LM117 was found in the manual of linear integrated circuits of SGS of 1982. The current is calculated by the formulas next to the diagram and has a maximum value of 1.5 A. The integrated circuit must be mounted in a heat radiator.
