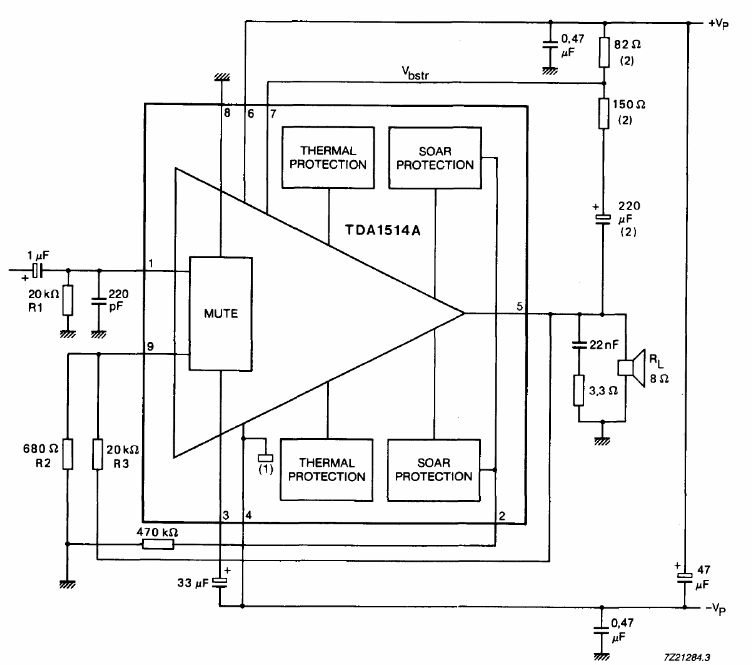

50 W amplifier TDA1514A (CB15371E)

Details
Written by: Newton C. Braga



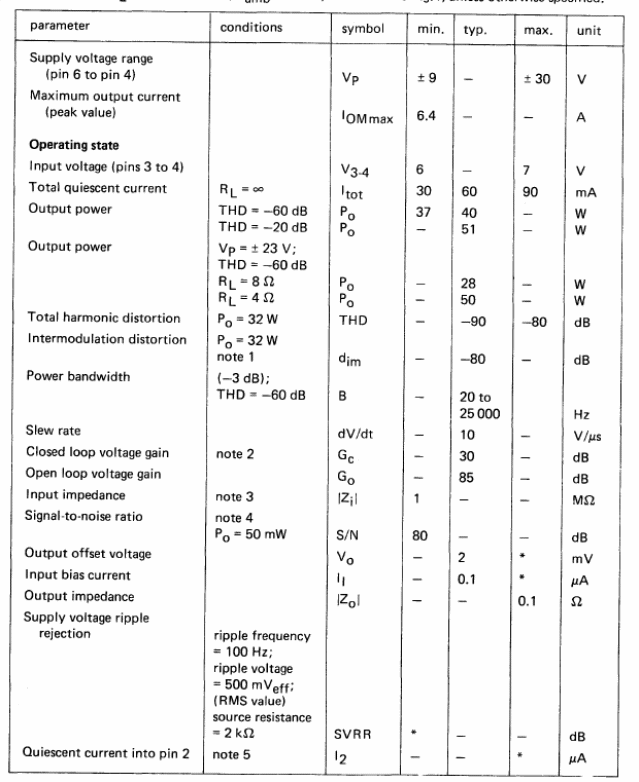

We found this circuit in the Philips integrated circuits manual of 1990. The circuit must be powered by a symmetrical high current source. The integrated circuit must have a good heat radiator.
