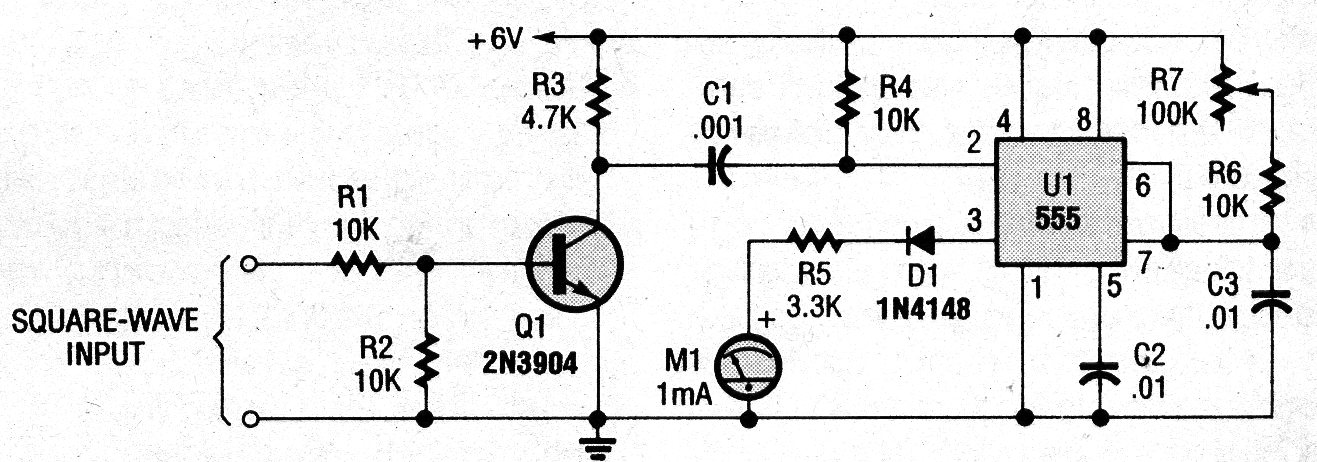

This instrument, based on a 555, measures frequencies up to 1 kHz, but its scale can be modified by changing C3. The circuit can be powered by batteries and the transistor can be a BC548. This circuit was found in a 1993 Poptronics.
