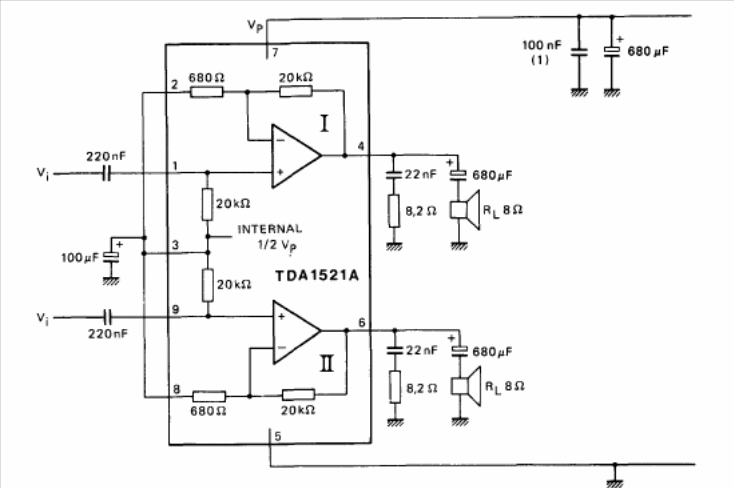

This amplifier for sound equipment was found in the Philips Databook of 1990. The circuit can be powered by a simple source of 15 to 40 V. The integrated circuit must have a good heat radiator.
| Clique na imagem para ampliar |
| Clique na imagem para ampliar |
