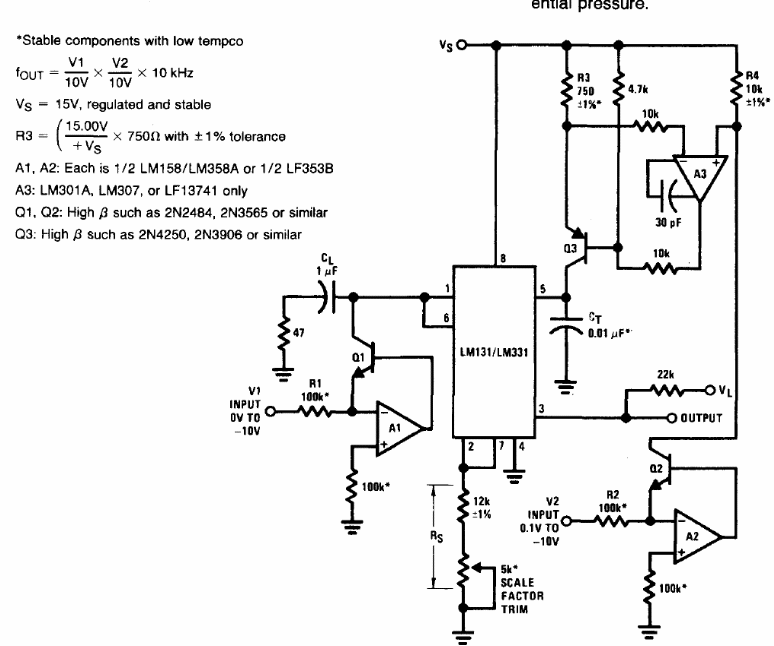

The presented circuit converts the product between two voltages in a frequency on a stable scale, according to the formula given next to the diagram. The circuit is from 1994 National Semiconductor documentation.
| Clique na imagem para ampliar |
LM311 Product Voltage to Frequency Converter (CB14437E)
- Details
- Written by: Newton C. Braga
