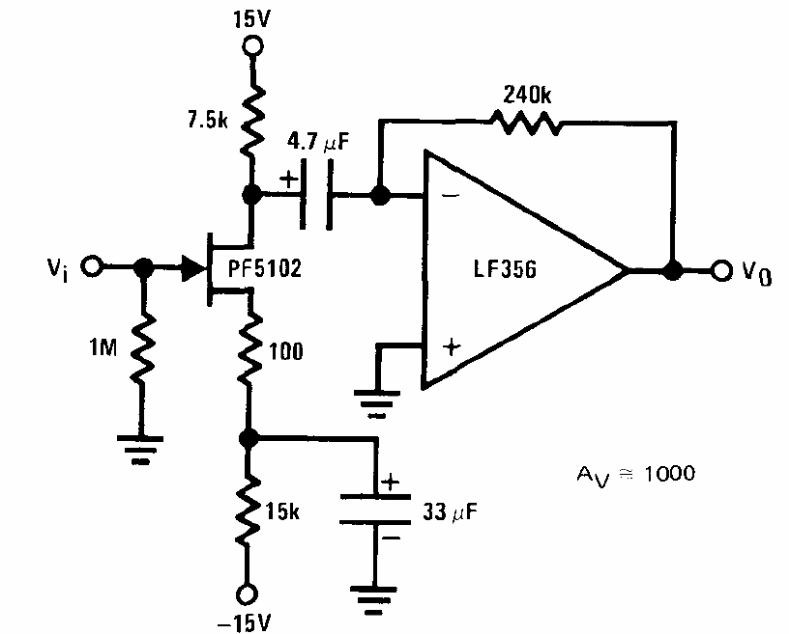

The presented circuit was found in the National Semiconductor FET Databook. The setting applies to other operational amplifiers and other FETs. The power supply must be symmetrical.
| Clique na imagem para ampliar |
FET Input Operational Stage (CB14620E)
