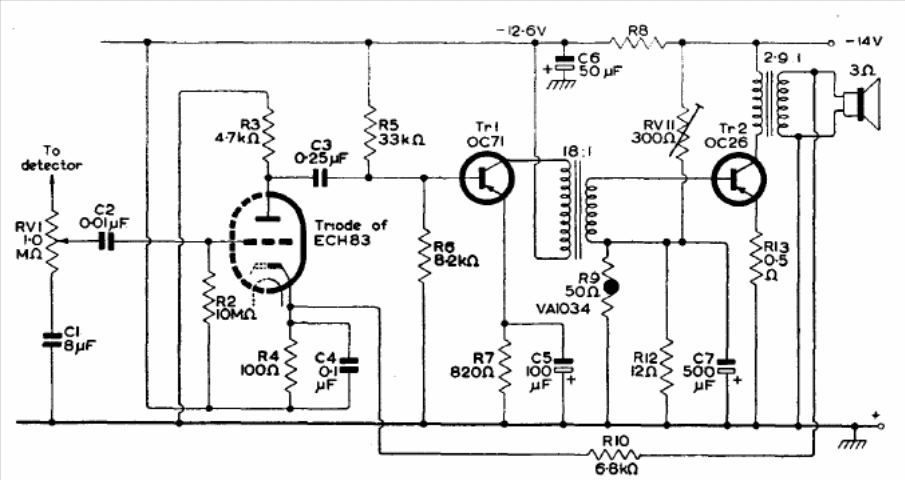

1960 Hybrid Audio Stage (CB14753E)

This audio configuration of televisions from the 1960s was found in a Mullard transistor reference manual. Transformers are the critical components.

| Clique na imagem para ampliar |

Tunnel Diode Oscillator (CB14442E)
This is the normal configuration for an oscillator with a tunnel diode. The crystal determines the frequency...
Very simple 2transistor Receiver (CB18316E)
This receiver uses few components, having been found in a Japanese magazine in 1967. The coil has...
600 ohms line Amplifier (CB16795E)
This circuit uses a 741 operational amplifier that must be powered by a symmetrical source of 6 to...
