Ultrasonic Transmitter (CB14459E)

Details
Written by: Newton C. Braga

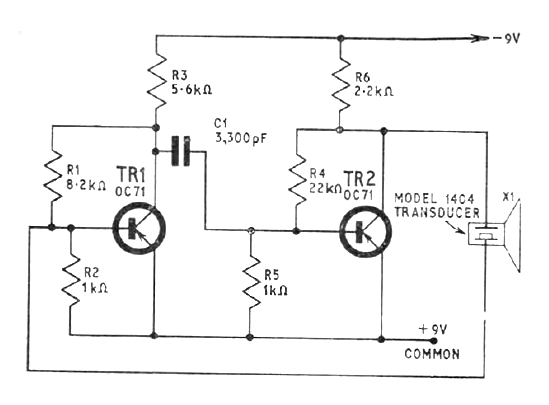

We found this ultrasonic emitter in a 1964 publication. The transducer is a piezoelectric type. This circuit can be used in conjunction with CB14458E.
