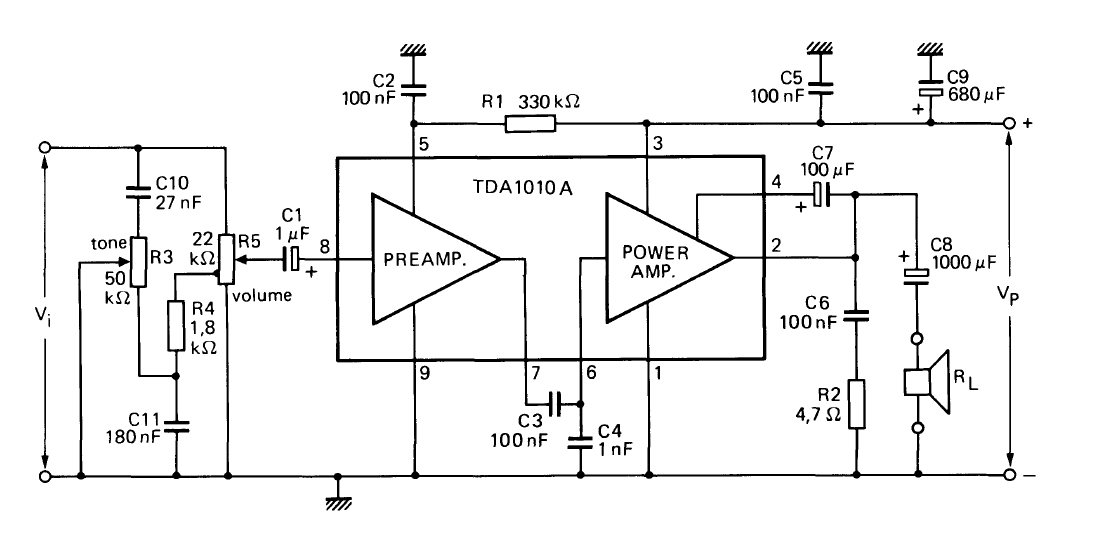

6 W amplifier TDA1010 (CB14720E)

Details
Written by: Newton C. Braga



This circuit was obtained in the Philips integrated circuits manual of 1990. The indicated power is 14.4 V, and the power depends on the load that can be between 2 and 16 ohms.
