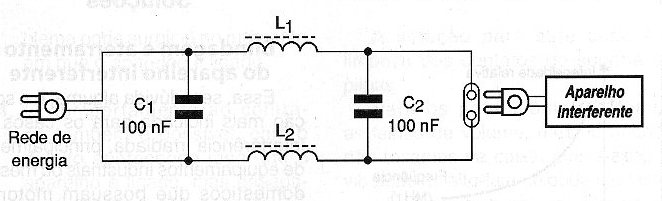

If interference occurs in several receivers, much more interesting than placing a filter on each interfered device is to use only one between the interfering device and the power network. We can use the two previous configurations for this purpose, connecting them as shown in figure. In this case we should only note that normally the interfering devices can have high powers, in which case the coils must be wound with thicker wires. Use wire 14 for power up to 500 W and 12 for power up to 1000 W.
